Project Overview
Delivered 20,877 sqm Mumbai Airport Facade BIM & LOD 400 Shop Drawings for UAE Client
The Challenge
What made this project complex
Mumbai Airport required high-precision curvilinear facade modeling for complex architectural forms, demanding exact fabrication documentation for multiple GRFG systems.
Key challenges:
Complex curved geometry across multiple facade systems
Fabrication-level LOD 400 detailing
Multi-team coordination between architectural, structural, and facade teams
Strict quality expectations from UAE-based facade contractor
Key Deliverables
Key Deliverables Project Complex
✔ LOD 400 Shop Drawings
✔ Fabrication Drawings
✔ Connection Details
✔ Assembly Sequences
✔ Curved Geometry Validation
Project Metrics
Project Metrics
|
Metric
|
Result
|
|---|---|
|
Facade Area
|
20,877 sqm
|
|
LOD
|
400
|
|
Facade Systems
|
4
|
|
Client Market
|
UAE / GCC
|
|
Sector
|
Airport Infrastructure
|
Our Scope of Work
Advanced Facade BIM Modeling
Developed complete 3D Revit facade models for 4 specialized systems:
• CF10 GRFG Curved Panel
• CF17 Curved Vertical Panel
• WF20 GRFG Curved Panel
• Canopy System
LOD 400 Shop Drawings
Prepared fabrication-ready:
• Panel-by-panel drawings
• Dimensioned installation drawings
• Section details
• Assembly layouts
Fabrication Drawings
• Connection detailing
• Anchor locations
• Assembly sequencing
• Manufacturing-ready documentation
Project Details
Client:
Extra Co Industries LLC, Ras Al Khaimah
Sector:
Aviation Infrastructure
Project Type:
Chhatrapati Shivaji Maharaj International Airport – Terminal Facade
Facade Area:
20,877 sqm
Location:
Mumbai India
Scope:
Complete Facade Modeling + Shop/Fabrication Drawings LOD: 400 (Fabrication Ready)
Platform:
Autodesk Revit
Project Outcome
Strategic Value for UAE/GCC Pitch
We delivered Mumbai Airport terminal facade modeling and LOD 400 fabrication drawings for Extra Co Industries LLC (UAE), including complex curved GRFG panel systems. This demonstrates our strong capability in high-precision facade engineering and fabrication support for GCC clients.

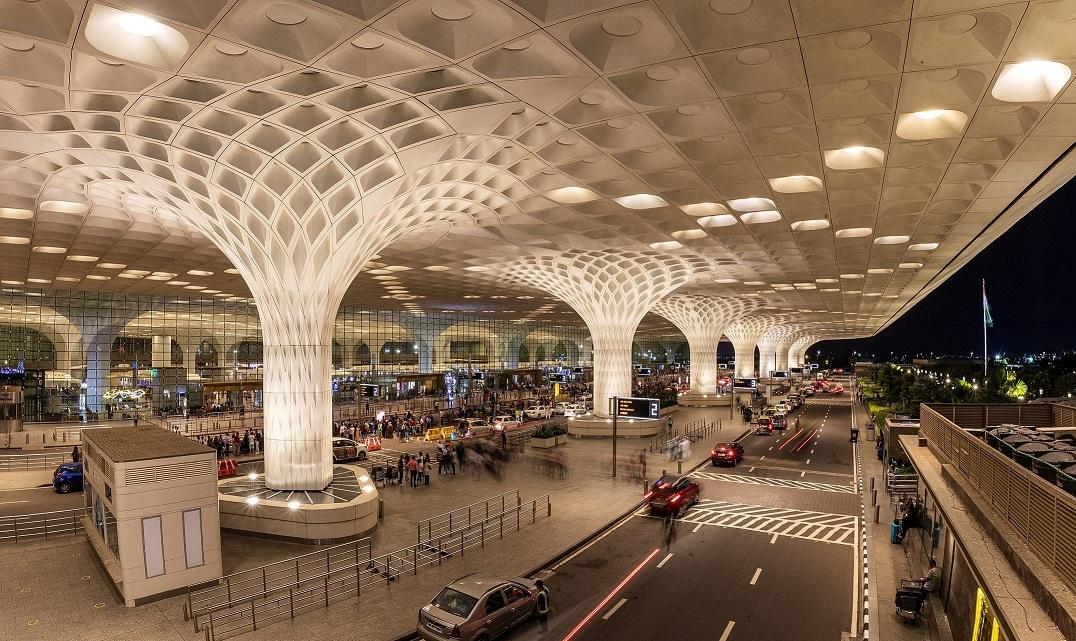

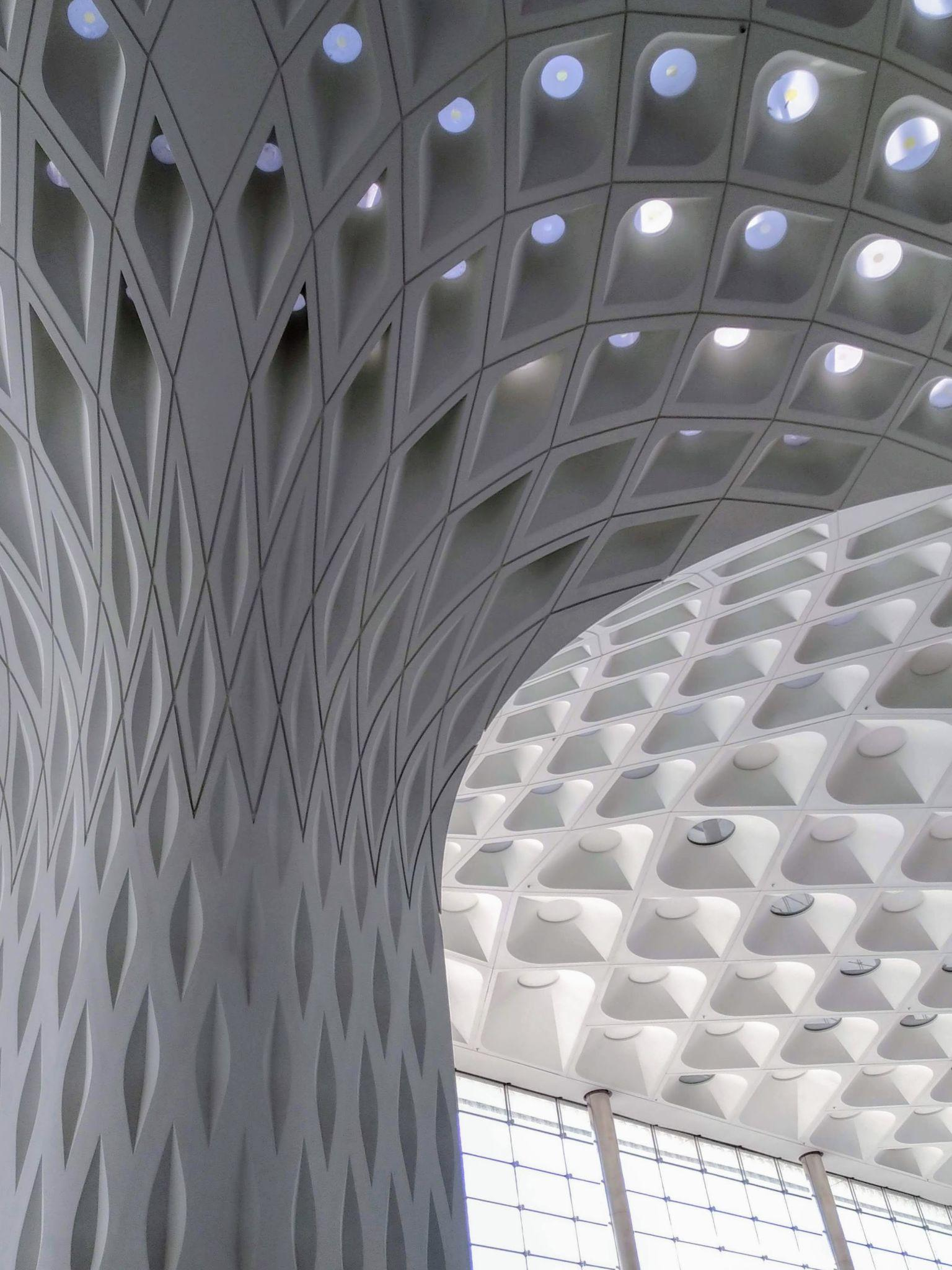

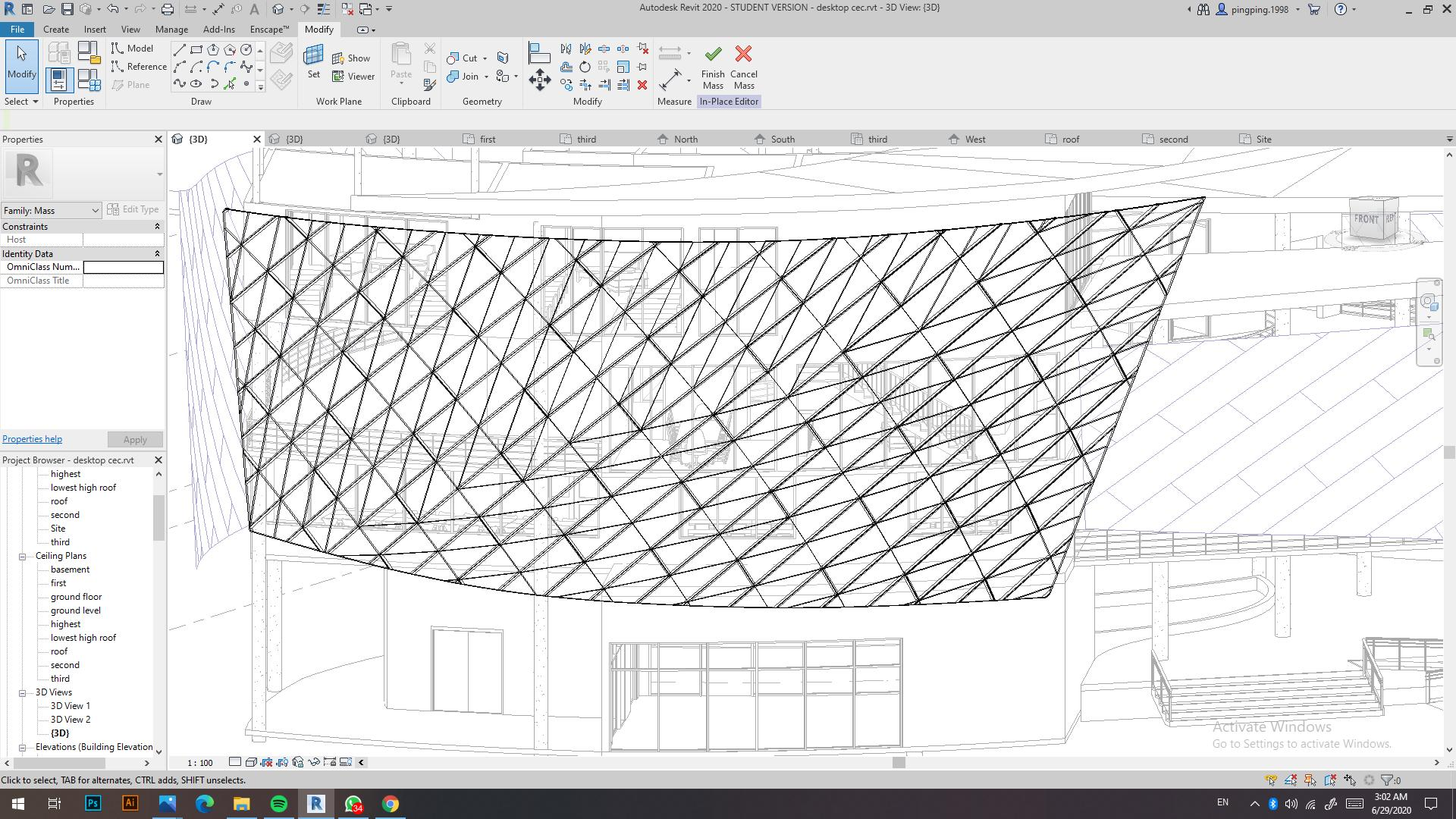

Glimpse of Work
